Description
xDescription

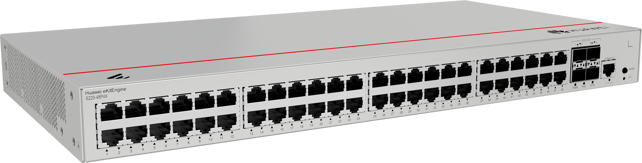

The Huawei eKitEngine S220 series switches are Layer 2 GE/10GE switches designed for the small office, home office (SOHO), and small and medium-sized enterprise (SME) markets. They include eight models with 8, 24, and 48 GE power ports (PoE/non-PoE), as well as GE/10GE uplink ports. These switches offer numerous features, such as various management methods (web interface, command line, and application management), flexible Ethernet networking, and diverse security controls. Therefore, they can be widely used in settings such as SOHO offices, businesses, budget hotels, factories, primary and secondary schools, hospitals, and building security.
Specifications
|
Article |
Specification |
|
Dimensions without packaging (H x W x D) [mm(in)] |
Base dimensions (excluding parts extending beyond the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in x 17.4 in x 8.66 in) Maximum dimensions (depth corresponds to the distance between the front panel ports and the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in x 17.4 in x 8.94 in). |
|
Dimensions with packaging (H x W x D) [mm(in)] |
90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
|
Chassis height [U] |
1U |
|
Frame material |
Metal |
|
Weight without packaging [kg(lb)] |
3.24 kg (7.14 lb) |
|
Weight with packaging [kg(lb)] |
4.29 kg (9.46 lb) |
|
Typical power consumption [W] |
49.44 W |
|
Typical heat dissipation [BTU/hour] |
168.69 BTU/hour |
|
Maximum power consumption [W] |
|
|
Maximum heat dissipation [BTU/hour] |
|
|
Static power consumption [W] |
34/04 S |
|
MTBF [years] |
48.14 years |
|
MTTR [hours] |
2 hours |
|
Availability |
> 0.99999 |
|
Noise at normal temperature (sound power) [dB(A)] |
49.3 dB(A) |
|
Noise at normal temperature (sound pressure) [dB(A)] |
37.3 dB(A) |
|
Number of card slots |
0 |
|
Number of power supply slots |
0 |
|
Number of fan modules |
2 |
|
Redundant power supply |
Not covered |
|
Long-term operating temperature [°C(°F)] |
-5°C to +50°C (23°F to 122°F) at an altitude of 0 to 1,800 m (0 to 5,905.44 ft). |
|
Restriction on the rate of change of the operating temperature [°C(°F)] |
When the altitude is between 1,800 and 5,000 m (5,906 and 16,404 ft), the highest operating temperature decreases by 1 °C (1.8 °F) for every 220 m (722 ft) increase in altitude. The devices cannot start when the temperature is below 0°C (32°F). The operating temperature varies from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used. |
|
Storage temperature [°C(°F)] |
–40°C to +70°C (–40°F to +158°F) |
|
Long-term operating relative humidity [HR] |
5% RH to 95% RH (non-condensing) |
|
Long-term operating altitude [m(ft.)] |
0–5,000 m (0–16,404 ft) |
|
Storage altitude [m(ft.)] |
0-5000 m (0-16404 ft) |
|
Power supply mode |
Integrated air conditioning |
|
Nominal input voltage [V] |
|
|
Input voltage range [V] |
|
|
Maximum input current [A] |
6 One |
|
Memory |
2 GB |
|
Flash memory |
Physical space: 1 GB |
|
console port |
RJ45 |
|
Eth Management Port |
Not covered |
|
USB |
Not covered |
|
RTC |
Not covered |
|
RPS Entry |
Not covered |
|
Overvoltage protection of the service port [kV] |
Common mode: ±7 kV |
|
Power supply surge protection [kV] |
Differential mode: ±6 kV; common mode: ±6 kV |
|
Level of protection against intrusion (dustproof/waterproof) |
IP20 |
|
Types of fans |
Integrated |
|
Heat dissipation method |
Air cooling for heat dissipation, intelligent fan speed control |
|
Direction of airflow |
Air intake on the left and air outlet on the right |
|
PoE |
Supported |
|
Certification |
EMC Certification Safety certification Manufacturing certification |
