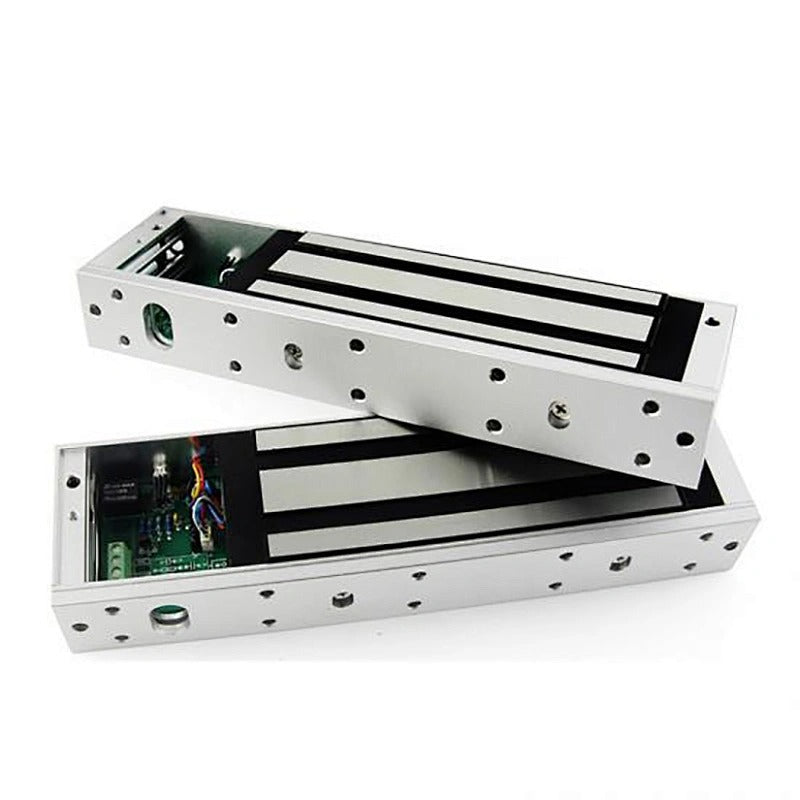

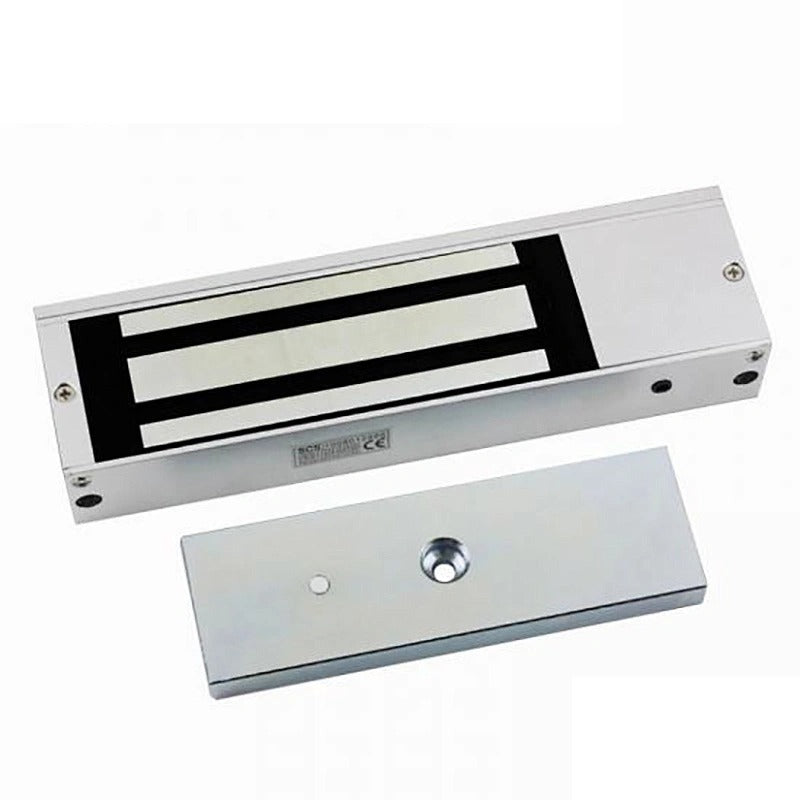

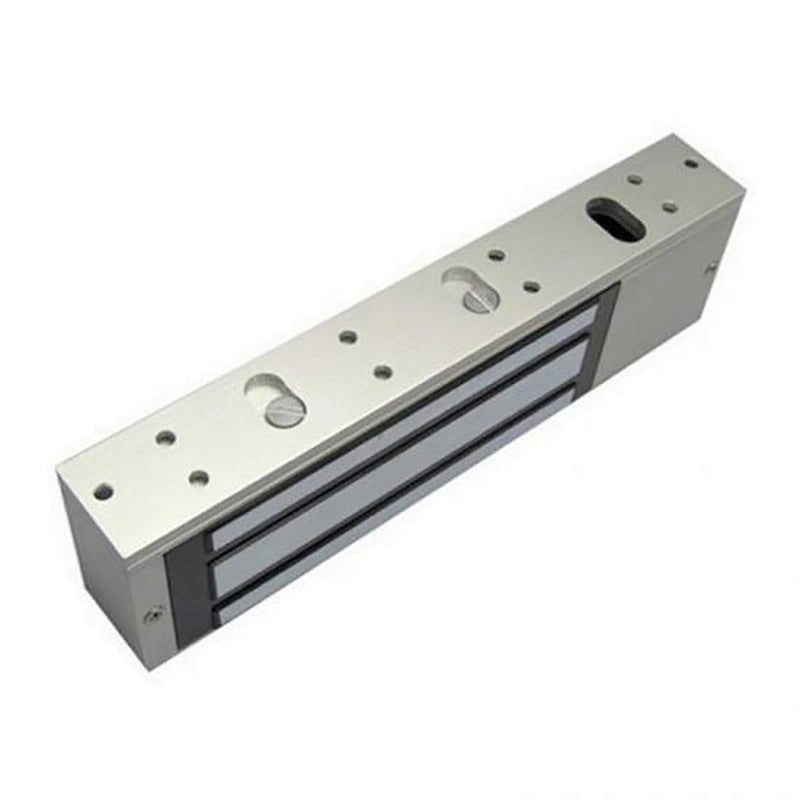

SIB L500B ELECTRIC LOCK 265*72*40 4.5KG

L500B

With LED (Red only)

Lock size

265Lx72Wx40H(mm)

Plate

185Lx60Wx13H(mm)

Holding Force

500kg(1200Lbs)

Voltage

DC12V or DC24V (adjustable)

Current Draw

12V/420mA 24V/210mA

Signal Output

Dry Contact, Max Rating of Contact Current 3A

Surface Temp

≤20°C

Operating Temp

-10°C ~ 55°C (14°F~131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum surface texture processing

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

4.5kg

Standard Packing

4pcs
