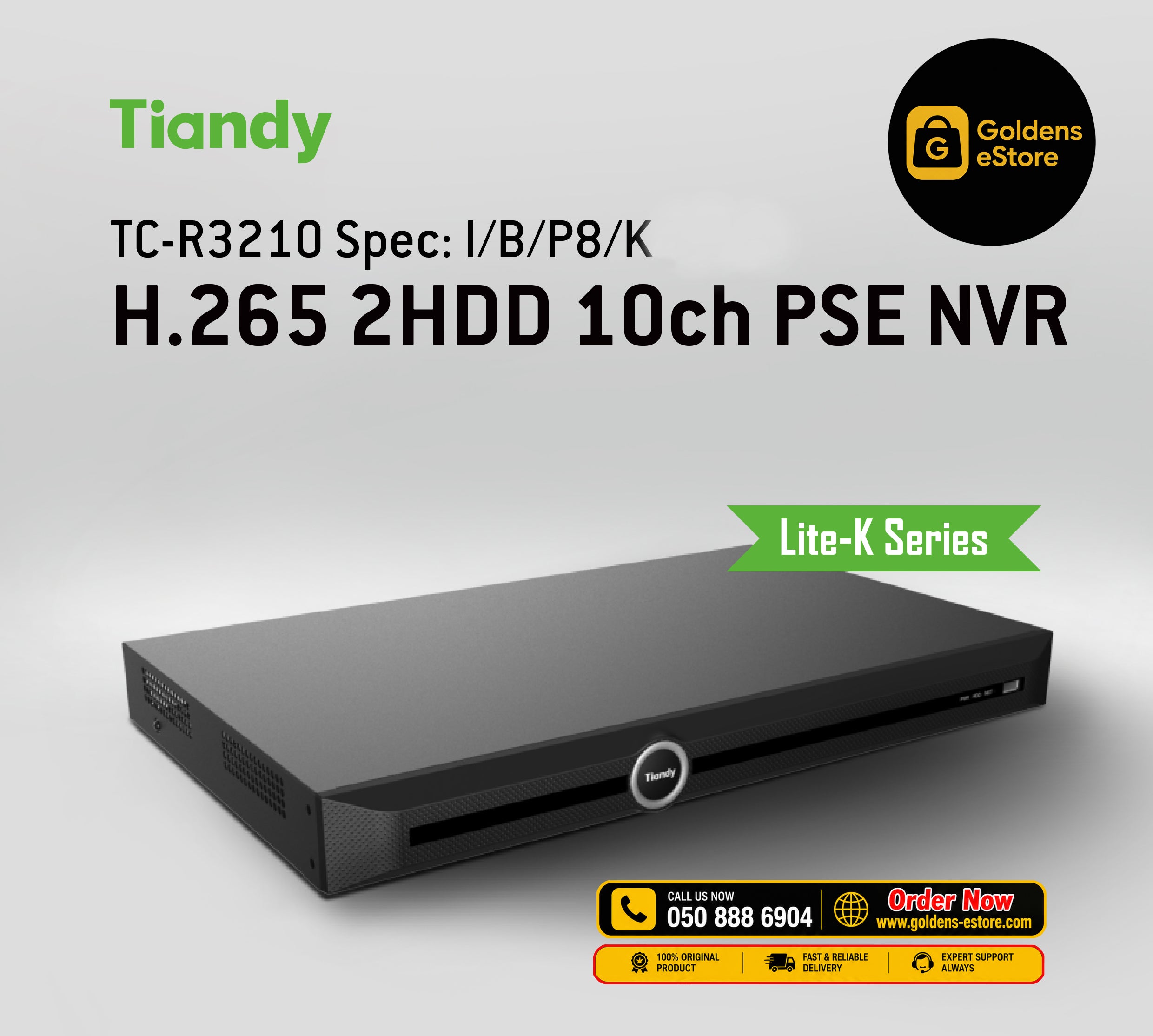

TIANDY TC-R3210 Spec:I/B/P8/K with 8 POE NVR support up to 8channels total up to 8MP, 2HDD

SPECIFICATIONS
Input
Video Input 10-ch
Max Resolution 8MP
Two-way Audio Input 1-ch, 3.5mm
Bandwidth Income 120Mbps; Outgoing 100Mbps
Output
HDMI/VGA Output
Screen Split 1/2/3/4/5/6/7/8/9/10
Audio Output 1 RCA
Decoding
Decoding Format S+265/H.265/H.264
Recording Resolution 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability 1 8MP, 1 6MP, 1 5MP, 2 4MP, 2 3MP, 4 1080P, 8 720P, 10 4CIF
Synchronous Playback 1 8MP, 1 6MP, 1 5MP, 2 4MP, 2 3MP, 4 1080P, 8 720P
Records Encryption Yes
Hard Disk
SATA 2 SATA interfaces for 2 HDDs
Capacity Up to 10TB for each HDD
eSATA Interface N/A
Array Type N/A
External Interface
Network Interface 1 RJ45 self-adaptive 10/100/1000 Mbps network interface
USB Interface 2 USB 2.0
Serial Interface N/A
Alarm In/Out 4/1
Network
Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, P2P
POE
POE Interface 8 RJ45 self-adaptive 10/100 Mbps network interface
Power per POE Port 30W
Max Current per POE Port 600mA
General
Web Version Web6
Language Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French,
Polish, Dutch, Hebraism, Arabic
Operating Conditions -10 ～55 , 10%~90% RH
Power Supply 100~240V AC, 50~60 Hz
Consumption (without HDD) 25W (without HDD)
Chassis 1U
Dimensions
Weight (without HDD) 2.9Kg (6.39lb)
HDMI 1-ch, 3840×2160, 2560×1440, 1920×1080, 1280×720, 1024×768, 1440×900, 1280×800
VGA 1-ch, 1920×1080, 1280×720, 1024×768, 1440×900, 1280×800
47.5×277×440
